Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

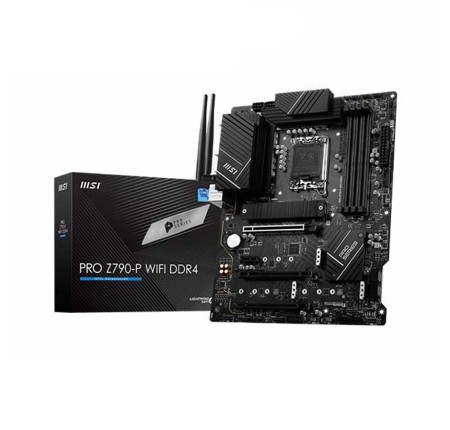

Pro Z790-P Wifi

CPU hỗ trợ

Intel

Chipset

INTEL Z790

RAM hỗ trợ

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266

4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Khe cắm mở rộng

3x PCI-E x16 slot
1x PCI-E x1 slot

Ổ cứng hỗ trợ

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

BACK PANEL

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. Flash BIOS Button
8. USB 2.0
9. HDMI™
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2x2 20Gbps (Type-C)
12. USB 3.2 Gen 2 10Gbps (Type-A)

LAN / Wireless

Intel^® 2.5Gbps LAN

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA

Kích cỡ

ATX
243.84mmx304.8mm
